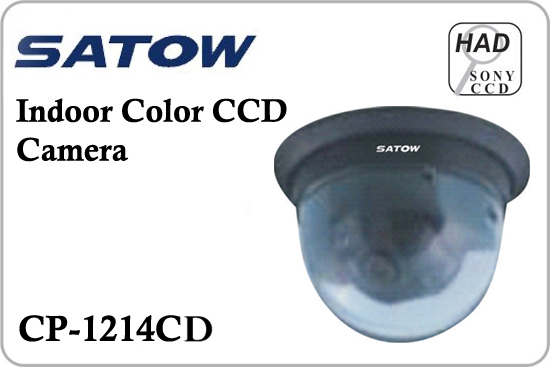

CCTV CP 1214CD

CCTV CP 1214CD
Brand: SATOW
Product Code: CCTV CP 1214CD
Availability: In Stock
Price: Rs0
Ex Tax: Rs0
Qty:     - OR -   Add to Wish List
Add to Compare

Specifications

  • 1/4  CCD
  • High Resolution 420 TVL
  • 500(H)*582(V) Picture Elements
  • 0.5 Lux/F=1.2 Mini illumination
  • DC12V/300mA Power supply
  • Dimensions(mm): 120(D) x 80(H)
  • Back Light Compensation (BLC),Auto Gain Control(AGC)

Features

  • BLC / AGC: AUTO
  • Electronic shutter: 1/50-10000 AUTO
  • Horizontal resulotion: 420TVL
  • Image Sensor: 1/3 CCD or 1/4 CCD
  • Lens: f = 2.8mm or f = 3.6mm
  • Minimum Illumination: 0.5LUX F=1.2
  • Operation temp: 0C + 40C
  • Picture Element: 512(H)X582(V)
  • Power consumption: < 2W
  • Power supply: DC12V+10%
  • S/N ratio: > 48dB
  • Scanning frequency: Horizontal: 15.62KHZ Vertical: 50Hz
  • Scanning system: 2:1 interface
  • Size: 120 x 120 x 80mm
  • System: PAL
  • Video output: 1.0+0.2Vp-o,75 Ohm
  • Weight: About 158g
