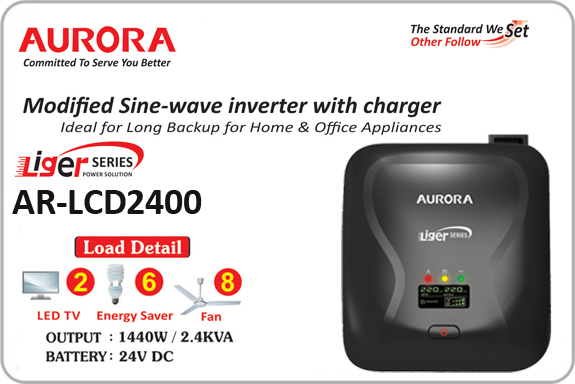

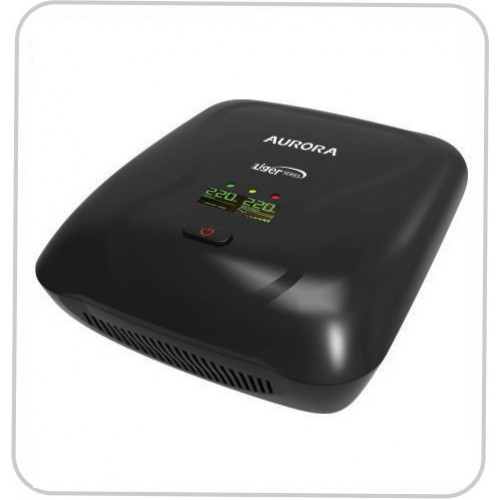

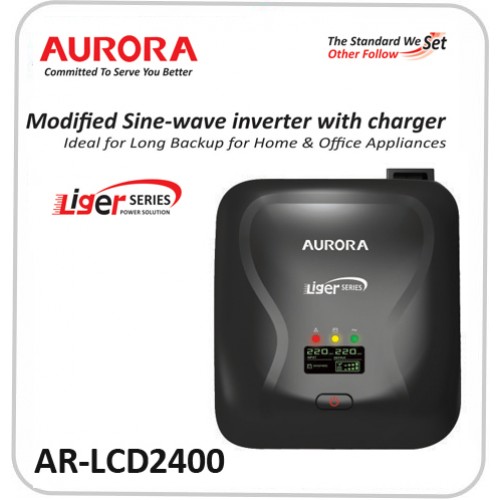

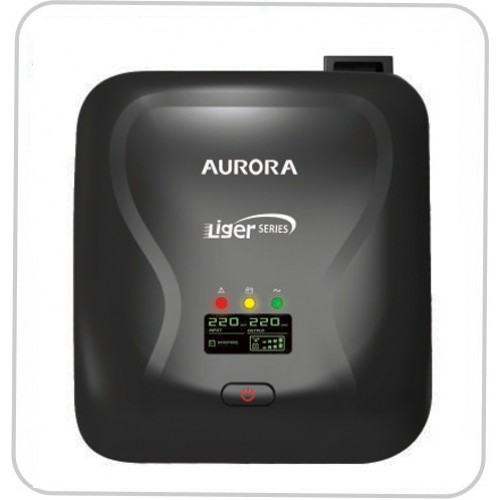

Modified Sine Wave Inverter AR-LCD2400

Modified Sine Wave Inverter AR-LCD2400
Modified Sine Wave Inverter AR-LCD2400 Modified Sine Wave Inverter AR-LCD2400
Brand: Aurora
Product Code: Modified Sine Wave Inverter AR-LCD2400
Availability: In Stock
Price: Rs0
Ex Tax: Rs0
Qty:     - OR -   Add to Wish List
Add to Compare

LIGER Series Power Solution

Description:

The Liger series convert DC power into AC power. With a continues output and compact design , the unit is ideal for running Tvs, stereos, laptop and desktop computers and other home appliances. Liger series will automatically transfer to UPS and provide power when AC supply is interrupted unexpectedly.

Feature:

  • Auto restart while AC current resumes
  • Rapid intelligent charger 10 A to 20 A selectable
  • Reverse Battery Safety Protection.
  • Provides Deep Discharge, Over Charge, Short Circuit, Overload Battery Short, Over Voltage, Under Voltage & Reverse Battery Safety Protection etc.
  • Multi-function LCD with LED indication and buzzer alarms
  • High efficient DC-to-AC Conversion, minimizing energy loss
  • Recommended MF Battery (Flooded lead acid battery can also be used)
  • Intelligent 2-stage charger control for efficient charging and preventing overcharge

Specification:

  • Capacity : 2.4KVA / 1440W
  • AC INPUT
  • Nominal Voltage: 220/230/240VAC
  • Input Voltage Range: 90~280VAC
  • Nominal Frequency: 50/60Hz (Auto Detection)
  • Technology: Inverter
  • Input Voltage Range Sector
  • Narrow: 170-280VAC
  • Wide: 90-280VAC
  • Voltage: 230VAC + 10-/18%
  • Inerter Mode Output
  • Frequency: 50/60Hz+-0.5Hz
  • Efficiency (AC to Dc): >95%
  • Waveform: Modified Sine Wave
  • Efficiency (AC to Dc): >95%
  • Efficiency (DC to Ac): >80%
  • Battery:
  • Nominal Voltage: 24V DC
  • Charging Voltage (Vbat<12.5V): 28.8+/-0.4V
  • Charging Voltage (Vbat<12.5V): 27.4+/-0.2V
  • Charger: Charging Current: 10A+-2A
  • Charger: Charging Current: 20A+-2A
  • Overcharging Protection: 16V+/-0.4V
  • Transfer
  • Transfer Time : Typical 15-20ms, 40ms max
  • Line Mode: Green LED blinks or right steadily
  • Indicator
  • Battery Mode: Yellow LED lights
  • Overload / fault: Red LED blinks or lights steadily
  • Low Battery Voltage in Battery Mode: Beeps every 2 seconds
  • Audible Alarm
  • Overload: Beeps every 0.5 seconds
  • Fault: Beep continuously
  • Environment
  • Temperature: 0~40`C
  • Dimension (mm) DxWxH: 255x80x224
  • Net Weight: 3.0Kg
